How to Clip Audio in Ableton Live — Native Methods vs. Dedicated Clippers

Clipping is one of the most effective ways to tame peaks and add character to your mix — but Ableton Live doesn't ship with a dedicated clipper. Here's how to get it done with what you have, and what changes when you use a purpose-built tool.

What Is Clipping?

Clipping cuts off the top of a waveform when it exceeds a set threshold (the ceiling). There are two flavors:

• Hard clipping — a flat cut. Everything above the ceiling is chopped off. Clean and surgical, great for transparent peak reduction.
• Soft clipping — a smooth curve that rounds off the peaks instead of cutting flat. This introduces harmonic saturation — warmth, grit, or aggression depending on how hard you push.

Producers use clipping on drum buses (shaving transients before a limiter), master chains (catching peaks to reduce limiter workload), and individual tracks (adding subtle saturation character).

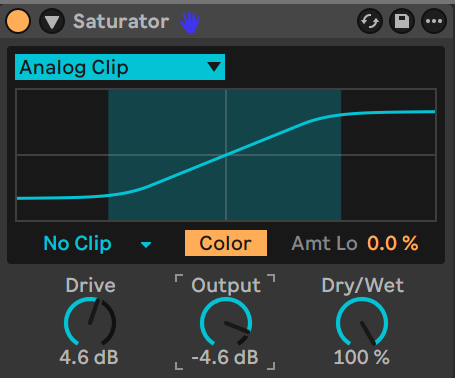

Method 1: Saturator (Ableton's Closest Native Option)

Ableton's Saturator is the most common workaround for clipping. It offers several curve types, and two of them are relevant here:

Hard Curve

• Set the curve type to Hard Curve
• Pull down the Drive to control how much signal hits the saturation
• This behaves similarly to a hard clipper, but Saturator wraps it in its own gain staging and coloration

Clip mode (via the waveshaper)

• Click the small waveshaper icon to open the curve editor
• Draw a flat ceiling — this gives you true hard clipping behavior
• The downside: it requires manual curve editing and there's no visual feedback of what's being clipped

Pros:

• Already in your Ableton installation, no extra purchase needed
• Multiple saturation curves to experiment with
• Dry/Wet knob for parallel processing

Cons:

• Not a true clipper — Saturator adds its own coloration even on "transparent" settings
• No real-time waveform display showing before/after
• No clip amount readout — you can't see how much is being clipped
• Auto makeup is basic (fixed gain compensation, not based on actual loudness measurement)

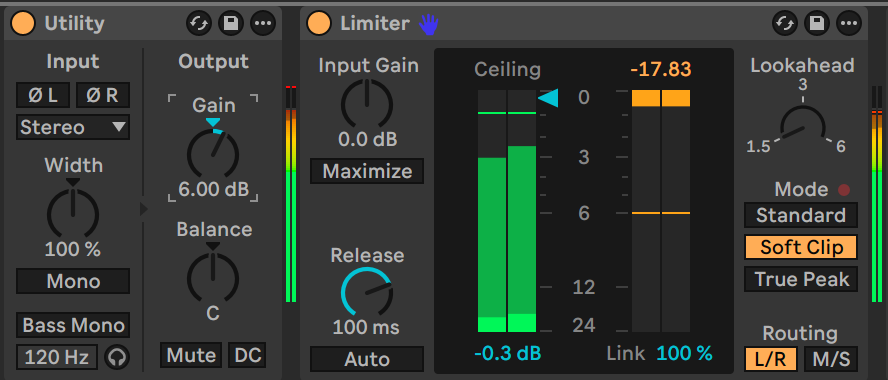

Method 2: Utility + Limiter Combo

A simple but crude approach:

1. Drop a Utility on your track and boost the Gain to push signal louder
2. Follow it with a Limiter set to a low ceiling (e.g. −0.3 dB)

The Limiter catches everything above the ceiling. It's technically limiting, not clipping — the difference is that a limiter uses a fast release envelope, while a clipper is instantaneous. But for quick peak shaving, it gets the job done.

Pros:

• Two stock devices, zero setup
• Limiter has a built-in gain reduction meter

Cons:

• Limiting ≠ clipping — different sonic character, especially on transients
• No soft clip option
• No parallel processing without extra routing
• Limiter introduces a small amount of latency

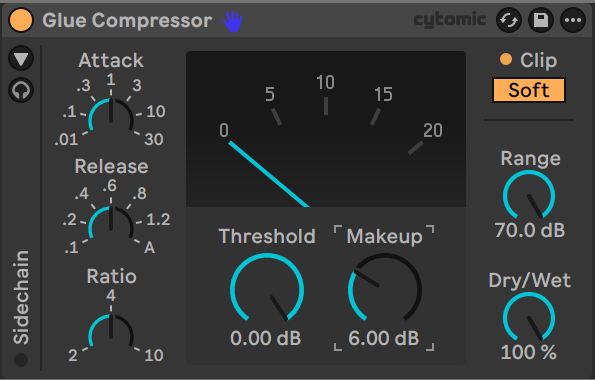

Method 3: Glue Compressor Soft Clip

Ableton's Glue Compressor has a hidden gem — the Soft Clip button in the bottom-right corner.

When enabled, it applies soft clipping to the output. This is great for gentle peak taming on a mix bus, and it's genuinely musical sounding.

Pros:

• One-click activation on a device you might already be using
• Musical, analog-style soft saturation

Cons:

• No threshold control — it clips at 0 dBFS, period
• No hard clip mode
• No visual feedback of clipping amount
• You can't use it as a standalone clipper without the compressor also affecting the signal (unless you set ratio to 1:1 and just use the soft clip)

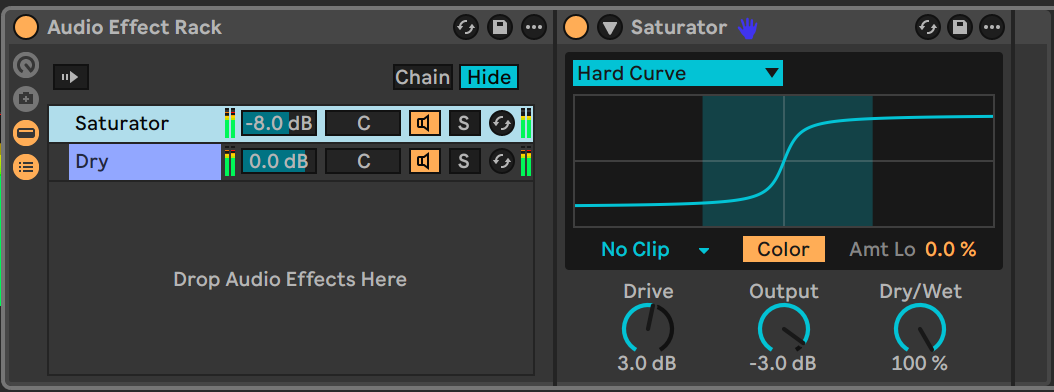

Method 4: Audio Effect Rack (DIY Parallel Clipper)

You can build a parallel clipping setup with an Audio Effect Rack:

1. Create a rack with two chains
2. Chain A: dry signal (no processing)
3. Chain B: Saturator in Hard Curve mode (your "clipper")
4. Use the chain volume faders to blend dry and clipped signals

This gives you parallel clipping — mixing the clipped signal back with the original to retain dynamics while adding density.

Pros:

• True parallel processing with full control over the blend
• Can map the blend to a macro knob

Cons:

• Requires manual setup every time
• Still inherits Saturator's limitations (no waveform, no clip readout)
• Complex routing for what should be a simple task

The Gap: What Native Tools Are Missing

All of the methods above work. Producers have been using them for years. But if you've ever used a dedicated clipper plugin, you'll notice a few things that Ableton's native tools don't offer:

• Real-time waveform display — seeing the input and output signal overlaid, so you can watch the clipping happen
• Clip amount readout — knowing exactly how many dB are being clipped at any moment
• True soft/hard clip switching — one device, two modes, one click
• Loudness-matched auto makeup — compensating for the volume loss caused by clipping, based on actual measurement rather than a fixed formula

This is where dedicated clippers come in.

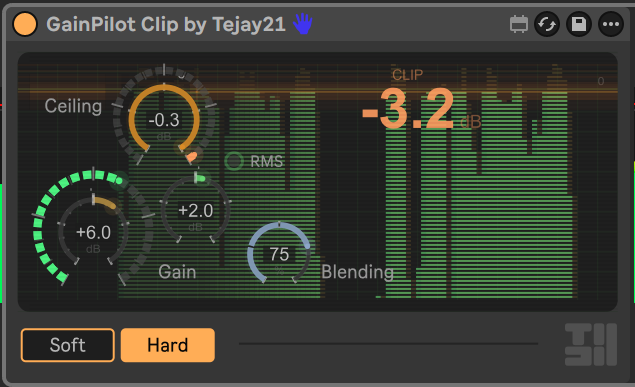

Dedicated Approach: GainPilot Clip

GainPilot Clip is a Max for Live clipper that addresses all of the above in a single device:

Soft + Hard Clip in one device — switch modes with one click. Soft mode delivers warm saturation with even harmonics. Hard mode is transparent peak removal.

CRT waveform display — real-time input/output overlay on a retro-style screen. You see exactly what the clipper is doing to your signal.

Clip amount readout — peak-hold display shows how many dB are being clipped. Click to reset.

Blend knob — built-in parallel clipping. No rack setup, no extra routing. Dial from 0% (true bypass) to 100% (full clip).

4× oversampling — reduces aliasing artifacts from clipping. Always on, zero reported latency.

RMS Match™ — auto makeup based on real loudness measurement. Click once, wait 2 seconds, and Output Gain is set to match your original loudness. Not a −ceiling guess — an actual RMS measurement of loudness loss.

Because it's a Max for Live device, it integrates directly into Ableton — no external VST, no wrapper, no latency compensation issues.

Quick Comparison

Saturator (Hard Curve)

• Clipping type: Saturation-based, not true clipping
• Waveform display: ✗
• Clip readout: ✗
• Parallel clipping: Dry/Wet knob
• Auto makeup: Basic

Glue Compressor Soft Clip

• Clipping type: Soft clip only, fixed at 0 dBFS
• Waveform display: ✗
• Clip readout: ✗
• Parallel clipping: ✗
• Auto makeup: ✗

GainPilot Clip

• Clipping type: True soft + hard clip, adjustable ceiling
• Waveform display: ✅ CRT overlay (input + output)
• Clip readout: ✅ Peak-hold dB display
• Parallel clipping: ✅ Blend knob (0–100%)
• Auto makeup: ✅ RMS Match™ (real measurement)

Conclusion

Ableton Live gives you enough tools to achieve clipping — Saturator, Glue Compressor soft clip, and Utility + Limiter all get the job done in different ways. For many producers, these stock solutions are all you need.

But if clipping is a regular part of your workflow — on drum buses, master chains, or individual tracks — a dedicated clipper saves time and gives you better visual feedback, proper soft/hard switching, and loudness-matched auto makeup.

GainPilot Clip is available as a Max for Live device. Requires Ableton Live with Max for Live.

🔗 Get it here: store.tejay21.com/gainpilotclip
