Understanding LUFS, RMS, and True Peak — A Producer's Guide

If you've ever bounced a mix only to find it sounds crushed on Spotify, or oddly quiet next to a reference track, chances are you're missing a key piece of the puzzle: loudness metering. In this guide, we'll break down the three measurements every producer should understand — LUFS, RMS, and True Peak — and show you how they work together to help you deliver professional, platform-ready masters.

What Is Loudness, Really?

Before we dive in, let's clear up a common misconception: loudness is not the same as peak level. A track can have high peaks but still sound quiet, or have modest peaks but feel crushingly loud. That's because our ears respond to sustained energy over time, not instantaneous spikes.

This is exactly why modern loudness standards moved away from simple peak meters toward perceptual loudness measurements — and why you need to understand all three metrics below.

LUFS — The Industry Standard for Perceived Loudness

LUFS (Loudness Units relative to Full Scale) is the current industry-standard measurement for perceived loudness, defined by the ITU-R BS.1770 specification and adopted by broadcast and streaming platforms worldwide.

How It Works

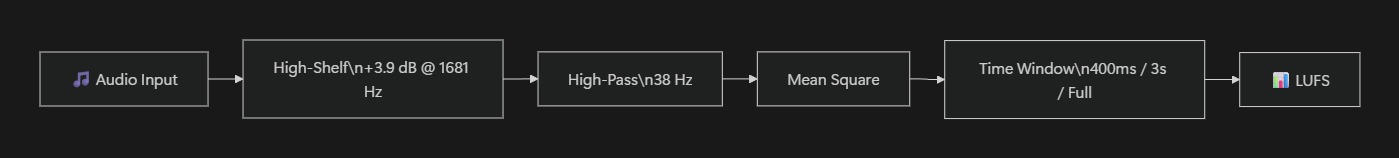

LUFS doesn't just measure raw signal energy. It applies a K-weighting filter that models human hearing:

1. High-shelf boost — emphasizes frequencies above ~2 kHz, where our ears are most sensitive
2. High-pass filter — rolls off sub-bass energy that we perceive as less "loud"

After filtering, the signal energy is averaged over a time window to produce a single loudness number in LUFS.

The Three Flavors of LUFS

Not all LUFS readings are created equal. You'll encounter three variants:

• Momentary LUFS (400 ms window) — Spotting transient loudness spikes in real time
• Short-term LUFS (3 second window) — Tracking loudness of a phrase or section
• Integrated LUFS (entire program) — Final delivery target, the number platforms care about

Integrated LUFS is the big one. It uses a clever dual-gate algorithm — first filtering out silence (absolute gate at −70 LUFS), then recalculating and filtering out passages significantly quieter than the average (relative gate at −10 LU below). This ensures quiet intros or fade-outs don't drag down your loudness reading.

Streaming platforms use Integrated LUFS to normalize your track:

• Spotify: −14 LUFS
• Apple Music: −16 LUFS
• YouTube: −14 LUFS
• Amazon Music: −14 LUFS

If your master comes in louder than the platform target, it gets turned down — and all that extra compression you added just made it sound worse for nothing.

LRA — The Often-Overlooked Companion

Alongside Integrated LUFS, you'll often see LRA (Loudness Range), measured in LU (Loudness Units). LRA tells you how dynamic your track is — the statistical spread between the softest and loudest passages (10th to 95th percentile of short-term loudness values).

• A heavily compressed pop master might have an LRA of 3–5 LU
• A dynamic film score could reach 15–20 LU

LRA helps you make intentional decisions about dynamics rather than just smashing everything into a limiter.

RMS — The Classic Energy Meter

RMS (Root Mean Square) has been the go-to loudness approximation for decades. It calculates the average signal energy over a short window — essentially the "electrical power" of your audio, without any perceptual weighting.

RMS vs. LUFS: What's the Difference?

The key distinction is simple but important:

• RMS treats all frequencies equally — a 50 Hz sub-bass rumble and a 3 kHz vocal line carry the same weight
• LUFS applies K-weighting to approximate perceived loudness, de-emphasizing low frequencies and slightly boosting the presence range

In practice: a bass-heavy track can show a high RMS reading while measuring noticeably lower in LUFS, because all that sub energy contributes to RMS but not as much to what we actually hear as loud.

When RMS Still Matters

Despite LUFS being the modern standard, RMS remains useful for:

• Gain staging — keeping your mix at a healthy signal level through the processing chain (many engineers aim for −18 dBFS RMS at the mix bus)
• Quick A/B comparisons — matching raw energy between two signals before critical listening
• Plugin sweet spots — many analog-modeled plugins expect signals in a certain RMS range to hit their sweet spot

Think of RMS as a technical health check and LUFS as the perceptual reality check.

Photo by Sebbi Strauch on Unsplash

True Peak — Catching What Regular Meters Miss

Here's a scenario that trips up many producers: your DAW's peak meter reads −1.0 dBFS, you export the file, upload it, and a streaming platform flags it for clipping. What happened?

The answer: inter-sample peaks.

The Inter-Sample Peak Problem

Digital audio is a series of discrete sample points. Your DAW's standard peak meter only reads those exact points. But when the audio is reconstructed during playback — by a DAC, a sample-rate converter, or a lossy encoder like AAC — the waveform between samples can overshoot 0 dBFS, creating distortion that your meter never warned you about.

This is especially common in heavily limited or clipped material, where consecutive samples sit near 0 dBFS and the reconstructed curve overshoots between them.

How True Peak Detection Works

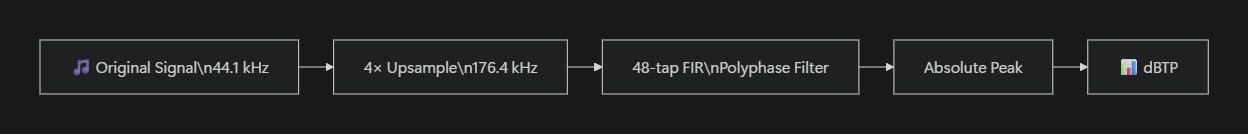

The ITU-R BS.1770 standard defines a rigorous True Peak measurement:

1. 4× oversampling — the signal is upsampled (e.g., 44.1 kHz → 176.4 kHz)
2. 48-tap FIR interpolation filter — a polyphase filter reconstructs the continuous waveform between original samples
3. Absolute peak detection — the maximum amplitude across all interpolated points is captured
4. Conversion to dBTP — the result is expressed in decibels True Peak

This catches peaks that exist between your original sample points — the hidden ones that cause codec distortion downstream. A standard sample-peak meter can underread by as much as ~0.5–0.7 dB compared to a proper True Peak meter.

True Peak Targets

Most platforms and broadcast standards require a maximum True Peak of −1.0 dBTP:

• Spotify: −1.0 dBTP
• Apple Music: −1.0 dBTP
• YouTube: −1.0 dBTP
• EBU R 128 (Broadcast): −1.0 dBTP
• AES Streaming Recommendation: −1.0 to −2.0 dBTP

Leaving at least 1 dB of True Peak headroom gives lossy codecs room to breathe without introducing audible artifacts.

Putting It All Together: A Practical Workflow

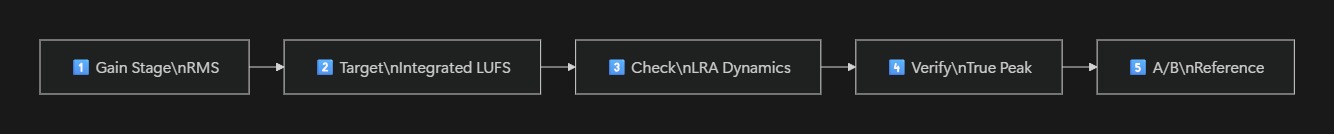

Here's a five-step workflow using all three measurements when mastering:

Step 1 — Gain Stage with RMS

Before touching any master bus processing, check your mix bus level. Aim for an RMS around −18 to −14 dBFS to give your mastering chain plenty of headroom and keep plugins operating in their sweet spot.

Step 2 — Master to an Integrated LUFS Target

Choose your target based on the primary platform. For most modern releases, −14 LUFS is a safe starting point. Use Integrated LUFS as your north star — not peak level, not RMS.

Step 3 — Check Dynamics with LRA

After limiting, glance at your LRA reading. If it's dropped below 4 LU and you're not making intentionally hyper-compressed music, you may have pushed too hard. Step back and let the track breathe.

Step 4 — Verify True Peak Headroom

Set your limiter's ceiling to −1.0 dBTP (make sure it's a True Peak limiter, not just a sample-peak limiter). Then confirm with a dedicated True Peak meter that no inter-sample peaks exceed your target.

Step 5 — A/B Against References

Load a reference track in the same genre. Compare Momentary and Short-term LUFS side by side during comparable sections — chorus vs. chorus, verse vs. verse. Your numbers don't need to match exactly, but they should live in the same neighborhood.

Common Mistakes to Avoid

⚠️ Chasing numbers instead of using your ears. Meters are guides, not goals. A track at −14 LUFS that sounds great will always beat one that was tortured to get there.

• Ignoring True Peak — Exporting at 0.0 dBFS without checking True Peak is the number one cause of codec distortion on streaming platforms
• Over-compressing to hit a LUFS target — Platforms normalize loudness down. If you crush dynamics to be louder, you just end up quieter and less dynamic after normalization
• Confusing RMS with LUFS — They correlate but don't agree, especially on bass-heavy material. Always use LUFS for final delivery decisions
• Only checking Momentary LUFS — Momentary readings fluctuate wildly. Integrated LUFS over the full track is what matters for platform normalization
• Forgetting to reset Integrated LUFS — If you don't reset between playback passes, old data contaminates your reading. Always start fresh

Quick Reference

• RMS — Average signal energy, no weighting. Use for gain staging and plugin sweet spots
• Momentary LUFS — Perceived loudness over 400 ms, K-weighted. Use for real-time monitoring
• Short-term LUFS — Perceived loudness over 3 s, K-weighted. Use for section-level balance
• Integrated LUFS — Perceived loudness over full program, K-weighted + gated. Use for platform delivery targets
• LRA — Dynamic range (10th–95th percentile), K-weighted + gated. Use for dynamics decisions
• True Peak — Maximum reconstructed amplitude, no weighting. Use for codec headroom

Final Thoughts

Loudness metering isn't about hitting magic numbers — it's about making informed decisions. LUFS tells you how loud your music feels. RMS tells you how much energy is flowing through the signal chain. True Peak tells you whether your audio will survive the journey from your DAW to the listener's ears intact.

Master all three, and you'll stop guessing and start delivering mixes that translate everywhere — from studio monitors to earbuds to club systems.

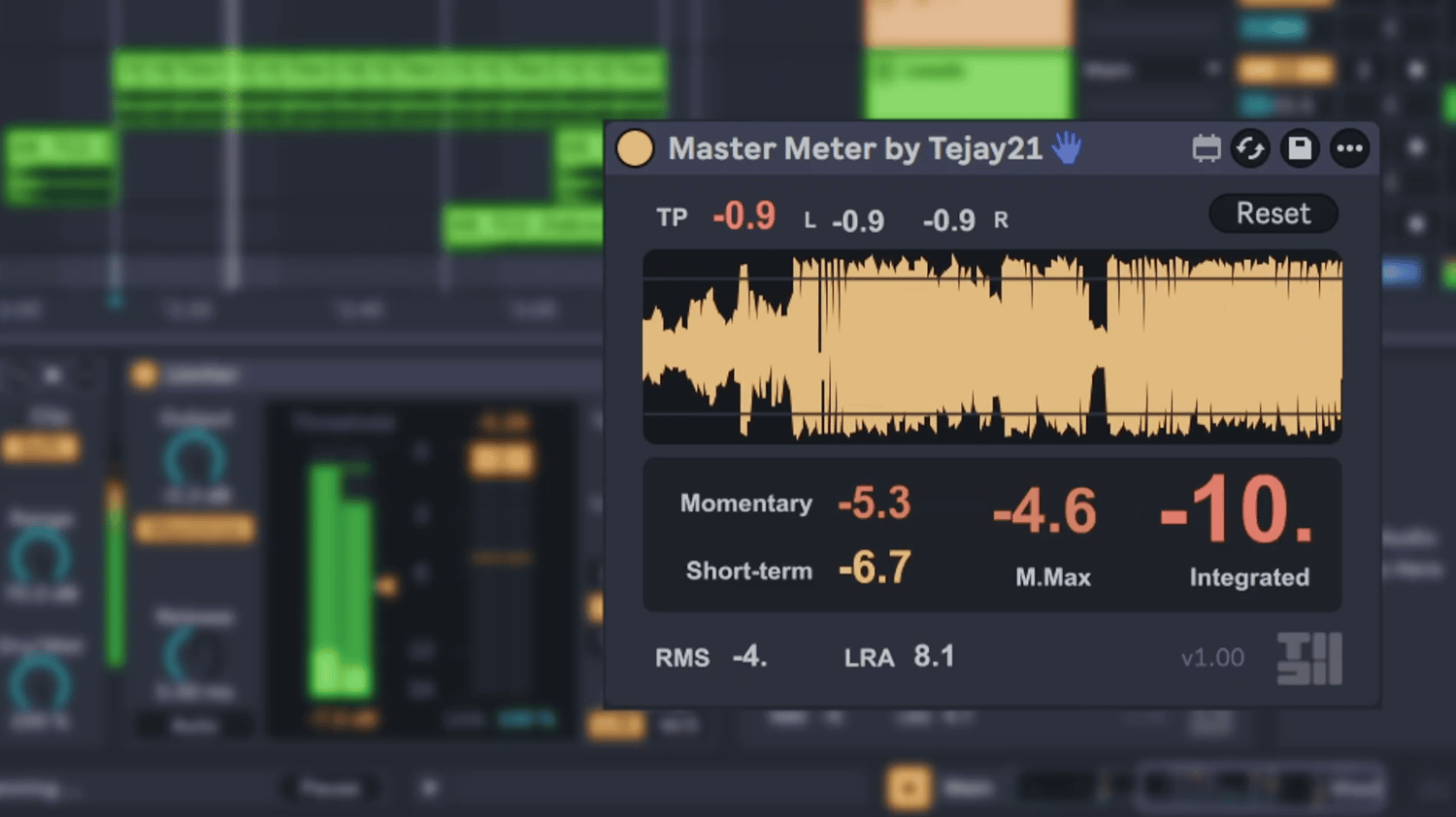

Want to see all of these measurements in one place inside Ableton Live? Check out Master Meter — a free Max for Live device that gives you real-time Momentary, Short-term, and Integrated LUFS, LRA, True Peak, RMS, and a stereo waveform display, all with zero latency.
