You are checking levels on a track in Ableton Live. Everything sounds fine. Then you hard-pan it to the left, and suddenly the level on that channel jumps noticeably higher.
You pan it back to center. The number drops again.
Nothing about the audio changed. No volume knob was touched. So what just happened?
This is one of those mix behaviors that catches a lot of producers off guard — but once you understand it, it changes how you read meters and make level decisions across the stereo field.
What actually happens when you pan a signal
When a mono signal sits at center pan, it does not live in some invisible "middle channel." Stereo audio only has two channels: left and right.
Center panning means the signal is sent to both channels at the same time, but at a reduced level on each side.
This is by design.
If the DAW simply copied the full signal to both L and R without any level adjustment, the combined result would sound significantly louder than when it was panned to one side. That would make panning unusable — every time you moved something toward center, it would blow up in volume.
To prevent this, Ableton Live (and virtually every DAW) uses a panning law that reduces the per-channel level when a signal is panned toward center.
The most common panning law is equal power panning:
- Hard left: 100% of the signal goes to the L channel, 0% to R
- Center: Each channel gets approximately 70.7% of the signal amplitude (which is −3 dB)
- Hard right: 0% to L, 100% to R
The math behind it: at center, each channel is scaled by roughly 0.707 (the square root of 0.5). When the power from both channels combines at your ears or monitors, the total perceived loudness stays consistent as you pan across the field.
That is the whole point. The perceived loudness stays the same no matter where you pan. But the per-channel measured level drops when the signal is shared between two channels.
Why this shows up clearly on a VU meter
Peak meters react to the fastest transients. They jump so quickly that this 3 dB difference can be hard to notice in real-time, especially on busy material.
A VU meter is different. It reads the average level of the signal over time (technically close to RMS) — much closer to how we actually perceive loudness. Because of that slower, smoother response, level differences from panning become much easier to read.
Here is what you would see if you put a stereo VU meter on a track and tried a simple test:
Test: mono signal, three pan positions

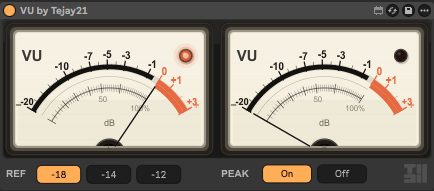

Hard left:
- L meter reads around 0 VU
- R meter sits at −∞ (silence)

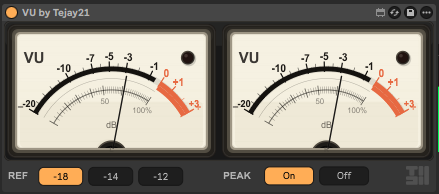

Center:
- L meter reads around −3 VU
- R meter reads around −3 VU

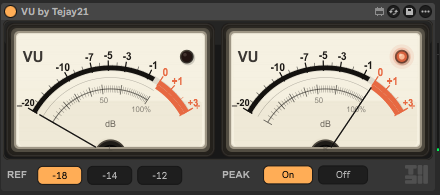

Hard right:
- L meter sits at −∞ (silence)
- R meter reads around 0 VU
The total energy in the system has not changed. But the way it is distributed between L and R has, and a VU meter makes that distribution immediately visible.
This is much harder to see on a peak meter, where transient spikes dominate the reading and the steady-state level difference gets buried.
Why this matters for mixing
Once you understand this behavior, a few practical things click into place:
1. Do not "fix" the center drop
Some producers see the lower per-channel level on a centered signal and instinctively turn it up. That is a mistake. The lower reading is correct — the signal is split between two channels, and the total perceived loudness is the same. Boosting it will make center-panned elements too loud relative to hard-panned ones.
2. Stereo balance is about distribution, not matching numbers
If your L and R VU meters show identical readings on a full mix, that is a good sign of stereo balance. But individual tracks will naturally show different L/R levels depending on their pan position — and that is exactly how it should be.
3. Gain staging needs to account for pan position
If you are gain staging a track before it hits a compressor or saturator, the level that matters is the level at that point in the chain — which is affected by panning. A track panned hard left will hit the next plugin's input at a higher per-channel level than the same track panned center, even though they sound equally loud.
This is one reason why gain staging with a VU meter is more reliable than guessing by ear or glancing at peak meters. The VU reading shows you the actual working level each channel is experiencing.
4. Bus-level metering tells a clearer story
On a mix bus or master, the VU meter averages everything together. At that level, you are reading the combined result of many tracks with different pan positions. If one side consistently reads hotter, it usually means the overall stereo balance is leaning — not that any single track is wrong.
Try it yourself with VU by Tejay21
The easiest way to see this in action is to run the test yourself.
- Drop a mono audio clip onto a track in Ableton Live — a sustained tone, a vocal, or a synth pad works best
- Place VU by Tejay21 on the track (it is free)
- Play the clip with the pan knob at center and note both L and R VU readings
- Now hard-pan left and watch the L meter jump up while R drops to silence
- Hard-pan right — same thing, mirrored
You will see the −3 dB difference clearly on the VU needles. It is one of those "aha" moments where metering behavior suddenly makes intuitive sense.
Tip: Use a simple, steady signal for the clearest result. A sustained sine wave or pad makes the level difference obvious. Percussive or dynamic material still shows the same behavior, but the needle movement makes it slightly harder to read at a glance.
The quick summary
- A mono signal panned center is split between L and R at roughly −3 dB each
- Hard-panned, the full signal goes to one channel only, so that channel reads higher
- The perceived loudness stays the same — this is the panning law doing its job
- A VU meter makes this difference easy to see because it reads average level, not just peaks
- Understanding this helps with gain staging, stereo balance, and not over-correcting centered elements
Next time you see your per-channel level drop when a sound moves to center, you will know exactly why.
It is not a problem.
It is your DAW doing exactly what it should.
If you want to start reading levels more clearly in Ableton Live, VU by Tejay21 is a free stereo VU meter with classic needle response, switchable reference levels, and optional peak warnings — designed to stay in your project every session.
